What Is the Working Principle of an Ignition Coil?
The ignition coil operates based on the principle of electromagnetic induction. It receives signals from the ECU (Engine Control Unit), which controls the switching of the primary circuit of the ignition coil through electronic control.
When current flows through the primary winding, a magnetic field is generated inside the iron core, storing magnetic energy. When the primary current is suddenly interrupted (usually by a power transistor disconnecting the ground circuit), the magnetic field rapidly collapses. This collapse releases stored energy and induces a high voltage in the secondary winding.
This induced high voltage is sufficient to cause the spark plug to discharge and ignite the air-fuel mixture. This process is known as inductive discharge ignition.
Core Function of Auto Ignition Coil
The primary role of an ignition coil is to convert the vehicle’s low-voltage battery power (typically 12V) into high-voltage electricity (approximately 15,000V to 30,000V) required to ignite the engine’s air-fuel mixture.
1. Energy Conversion and Amplification
Auto ignition coil is essentially a step-up transformer that dramatically increases voltage through electromagnetic induction:
- Primary winding: Receives 12V DC from the battery and generates a magnetic field when energized
- Secondary winding: Contains far more turns than the primary coil; when the primary current is cut off, a high voltage is induced
- High-voltage output: The generated voltage is delivered to the spark plug (via a distributor or directly), breaking down the air gap to create a spark
2. Ensuring Proper Engine Operation
Without the high voltage generated by the ignition coil, the spark plug cannot produce a spark, and the engine will fail to start or operate properly.
- Precise ignition timing: Works with the ECU to deliver high voltage at the optimal moment for complete combustion
- Stable performance: Maintains consistent high voltage output even with minor battery voltage fluctuations, ensuring engine power and fuel efficiency

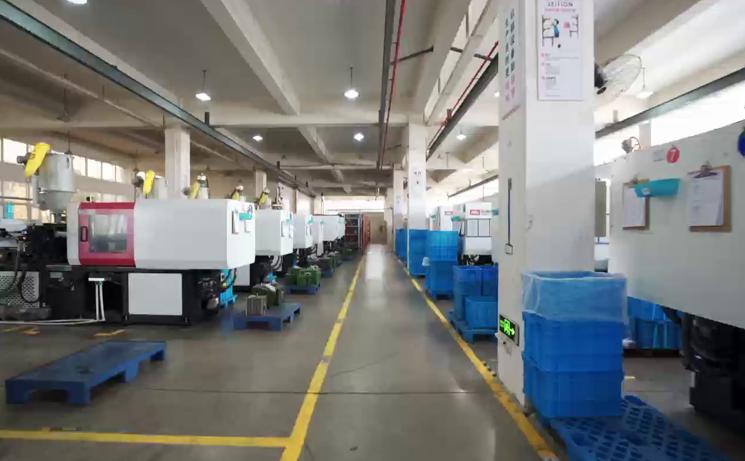

Hear is the picture of car ignition coil factory. Kowze is auto ignition coil supplier. Click here to know more.
Types of Ignition Coils

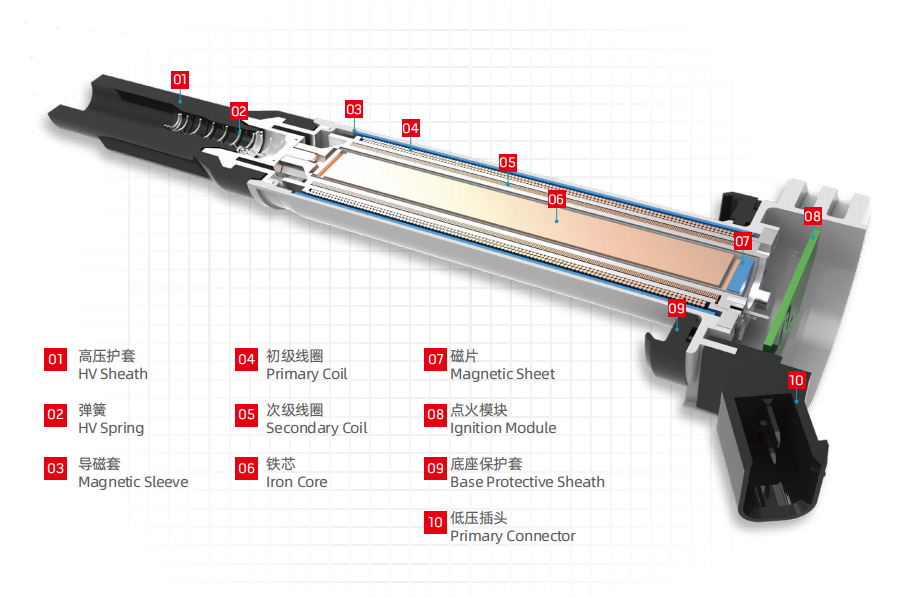

1. Pencil-Type Ignition Coil (Coil-on-Plug)
This is an open magnetic circuit type ignition coil. The iron core uses an open structure (such as bar-shaped or U-shaped), where the magnetic field completes its path through air.
It is an integrated design that combines the ignition coil and high-voltage wire into a slim “pencil-like” structure installed directly on top of the spark plug.
Key features:
- Integrated coil-on-plug design
- Eliminates high-voltage cables, reducing energy loss
- Improves combustion efficiency and fuel economy
- One coil per cylinder, mounted directly on the spark plug

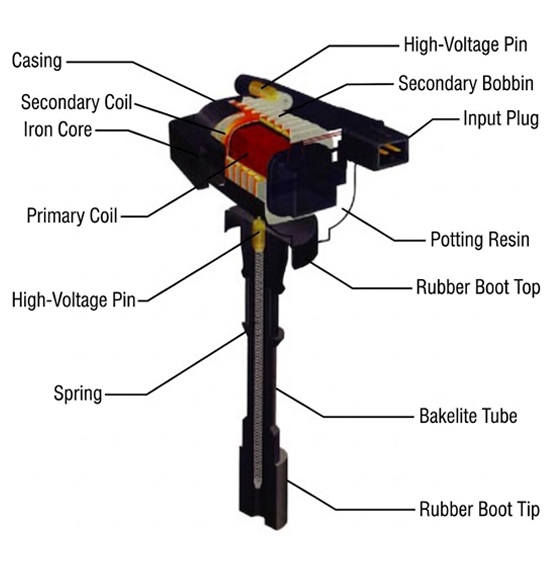

2. Top-Mounted Ignition Coil
This is a closed magnetic circuit design, where the iron core forms a closed loop (such as ring-shaped or rectangular). The magnetic field circulates entirely within the core, minimizing leakage.
Key features:
- High energy output and high voltage stability
- Longer spark duration
- Can support single-output or dual-output designs

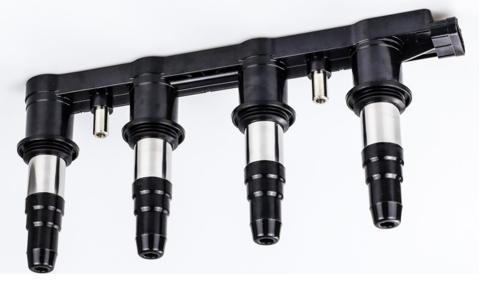

3. Inline Ignition Coil
- A structured, evenly arranged plug-in ignition coil system.
- Drawback: If one cylinder fails, the entire coil assembly usually needs to be replaced.
Ignition Coil Lifespan
The service life of an ignition coil is typically 50,000 to 100,000 kilometers, but actual lifespan varies significantly depending on multiple factors.
1. Key Factors Affecting Lifespan
Vehicle Type and Design Differences
- German vehicles (e.g., Audi, Volkswagen): More complex engine conditions, lifespan may be 30,000–60,000 km
- Japanese vehicles (e.g., Toyota, Honda): Designed for durability, lifespan can reach 80,000–120,000 km, sometimes over 150,000 km
- Luxury vehicles: Often use closed magnetic circuit designs and high-temperature resistant materials, resulting in longer lifespan
Materials and Manufacturing Technology
New-generation ignition coils (e.g., MAX10 series) use nanoceramic insulation layers and intelligent thermal control systems, extending lifespan up to 150,000 km, with 30% improved high-temperature stability.
OEM parts typically use high-quality silicon steel laminations, pure copper windings, and precision sealing, offering 30%–50% longer lifespan compared to aftermarket parts.
2. Driving Conditions and Habits
- Harsh environments: High temperature (>40°C), humidity, or dusty conditions can significantly shorten lifespan to below 50,000 km
- Frequent starts / heavy-duty use: Taxis or ride-hailing vehicles may experience 20%–30% shorter lifespan due to repeated cycling
- Low-quality fuel: Carbon deposits from incomplete combustion increase coil load and accelerate wear

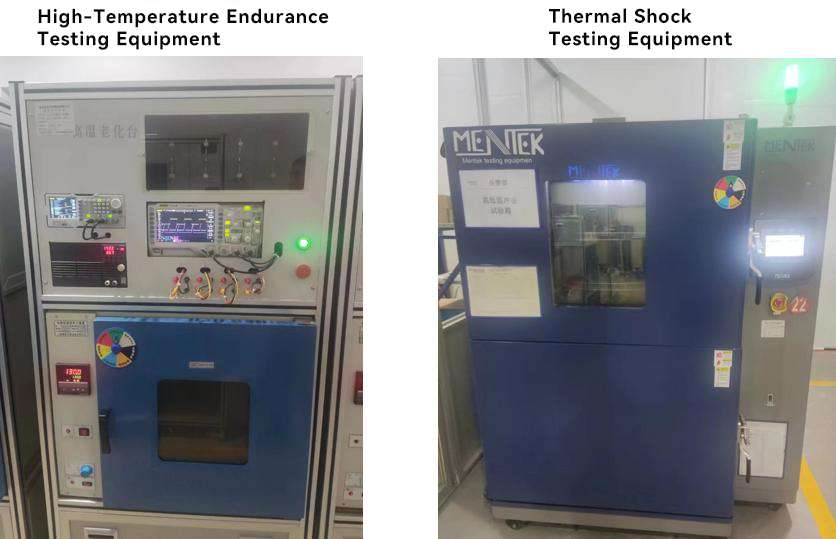

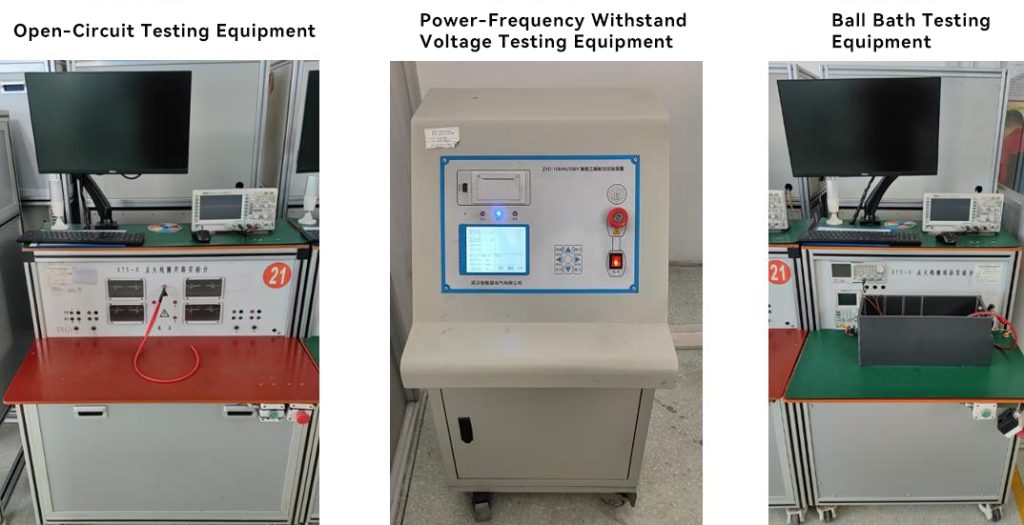

About Testing Machine
Symptoms of Ignition Coil Failure
A faulty ignition coil directly disrupts engine ignition performance, leading to power loss, increased fuel consumption, engine damage, and potential driving safety risks.
1. Severe Driving Performance Issues
- Engine shaking or cylinder misfire
- Significant power loss
- Hard starting or failure to start
2. Check Engine Light On
The dashboard warning light may illuminate with fault codes such as:P0351, P0300, P0301 and others
3. Accelerated Component Wear (Hidden Damage)
- Increased fuel consumption and higher emissions
- Damage to catalytic converter and oxygen sensors
- Increased carbon buildup and engine wear
